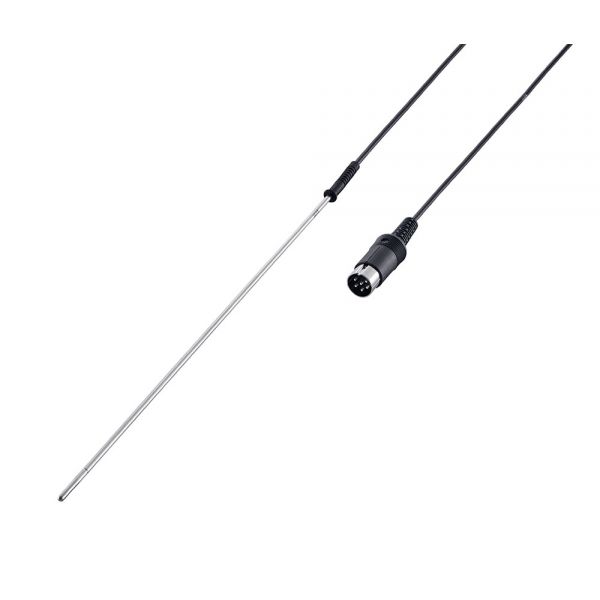

IKA temperature sensor, stainless steel PT 1000.60 - Ø 3 mm
IKA temperature sensor made of stainless steel, with a PT1000 element class A, Ø 3 mm × 254 mm and a measuring range of -20°C → 350°C.
The IKA PT 1000.60 is an immersion probe made of stainless steel 1.4571. The sensing element is a PT1000 to DIN IEC 751, class A. It measures temperatures between -20°C and 350°C with an accuracy of ± (0.15 + 0.2% of reading) K and a response time t9/10 of 10 s. The probe tube has a diameter of 3 mm and a length of 254 mm; the minimum immersion depth is 20 mm, the cable is 1050 mm long.
Technical data
- Probe type: Immersion probe
- Sensor type: PT1000 (DIN IEC 751 Class A)
- Accuracy of temperature measurement: ± (0.15 + 0.2% of measured value) K
- Response time t90: 10 s
- Temperature measuring range: -20 - +350°C
- Probe tube material: Stainless steel 1.4571
- Probe tube diameter: 3 mm
- Probe tube length: 254 mm
- Immersion depth min.: 20 mm
- Weight: 25 g
Suitable for
Suitable for IKA Plate (RCT digital), RCT 5 digital, C-MAG HS 4 digital, HS 7 digital, HS 7 control and HS 10 digital, HBR 4 control and HBR 4 control LR, Dry Block Heater 1 and 4, KS 4000 i control and KS 4000 ic control, VC 10 pro and VC 10 lite.
| Brand | Ika |
|---|---|
| UNSPSC code | 42182209 |
| leadtime | 14 |
| eclass | 32010000 |
| Manufacturer reference | 0003516800 |
| ISO code | PCE |
| Reference | A28005 |
| Sales Unit | 1 Piece |
| Temperature range | −50 to 400 °C |
| Type version | Immersion - Penetration thermometers |
