IKA H.FKM.12 FKM Hose
Reference
A55786
Sales Unit
1 Piece

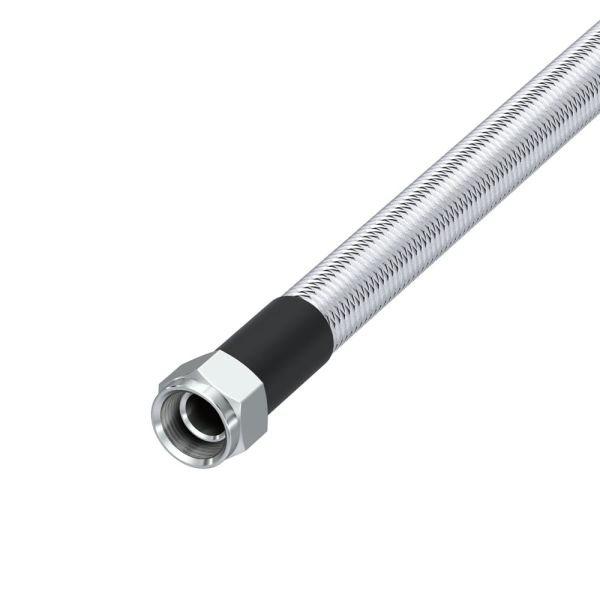

Hose set DN 12 (2 x 1.5 m) in Viton (FKM) reinforced with stainless wire mesh, featuring M16x1 union nut tube connectors and a temperature range of -30 to 180 °C.
This Viton (FKM) hose set, reinforced with stainless wire mesh, is engineered for high-temperature thermostat and circulation applications requiring DN 12 connections. The set consists of two 1.5 m hoses with an inner diameter of 10 mm and an outer diameter of 16 mm, connected via tube connectors with M16x1 union nuts. A temperature range of -30 to 180 °C makes the set suitable for both deep-freeze cooling and high-temperature heating; operating pressures above 1 bar are available on request. Chemical resistance includes water, silicon oils, ethylene glycol, mineral oil and ethanol.
| Iso Code | PCE |
|---|---|
| UNSPSC code | 41103800 |
| Brand | Ika |
| Manufacturer reference | 0004569300 |
| ISO code | PCE |
| eclass | 32010000 |
| leadtime | 10 |
| Reference | A55786 |
| Sales Unit | 1 Piece |
No price available or do you need more info for this product? Request your info with the form below.
