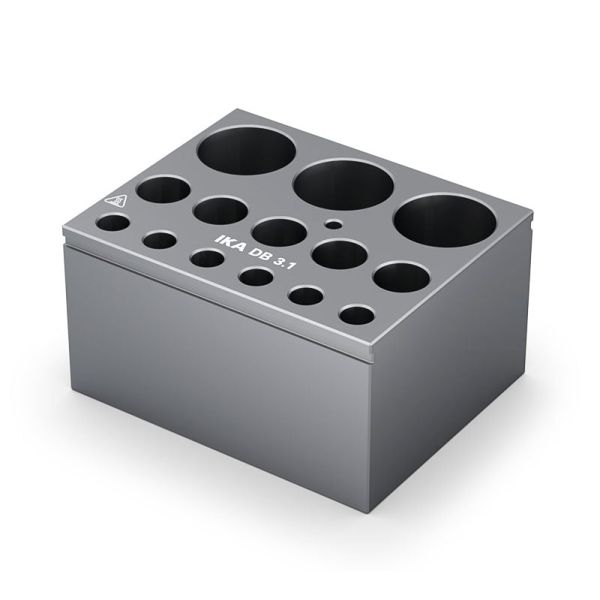

IKA DB 3.1 Dry Block Insert
Reference
A55847
Sales Unit
1 Piece
Combination dry block insert for test tubes of 6 mm, 12/13 mm and 25 mm diameter, compatible with IKA dry block heaters. Pore sizes of Ø 8.3 / Ø 13.9 / Ø 26.2 mm with 6 / 5 / 3 holes at a depth of 48.4 mm.
The IKA DB 3.1 is a versatile combination insert for dry block heaters, designed to accommodate test tubes of 6 mm, 12/13 mm and 25 mm diameter. Pore sizes are Ø 8.3 mm, Ø 13.9 mm and Ø 26.2 mm, offering 6, 5 and 3 holes respectively. All holes share a uniform depth of 48.4 mm to ensure consistent heat transfer across tube formats. Measuring 95 x 76 x 51 mm (W x D x H), this block fits seamlessly into compatible IKA dry block heaters and provides maximum flexibility for daily laboratory work.
| Iso Code | PCE |
|---|---|
| UNSPSC code | 41103800 |
| Brand | Ika |
| Manufacturer reference | 0004468300 |
| ISO code | PCE |
| eclass | 32010000 |
| leadtime | 10 |
| Overall dimensions | 95 x 51 x 76 mm |
| Reference | A55847 |
| Sales Unit | 1 Piece |
