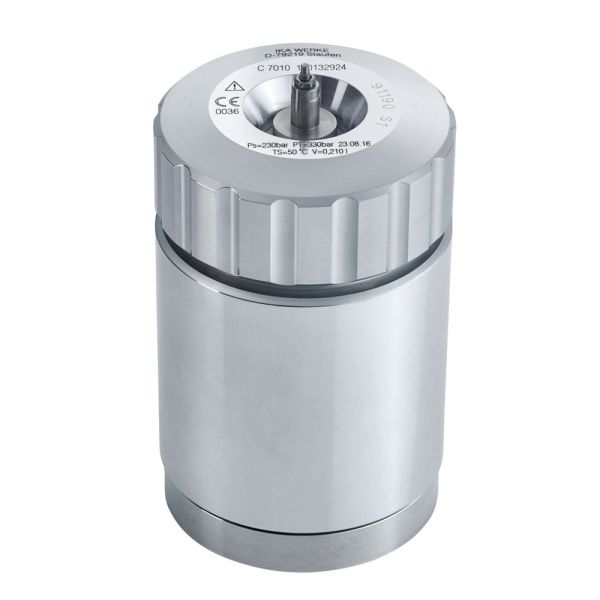

IKA decomposition vessel, standard C 7010 - 210 ml

Reference
A56566
Sales Unit
1 Piece

IKA standard decomposition vessel with a usable volume of max. 210 ml, for pressures up to 230 bar and oxygen pressures up to 40 bar; wetted material: stainless steel 1.4571.

Login for Price
We found other products you might like!
  1. IKA measurement cell C 7000 Ref. A56565
    Login for Price More details

The IKA C 7010 is a standard decomposition vessel for the IKA C 7000 calorimeter system. It has a usable volume of max. 210 ml, a maximum pressure of 230 bar (test pressure 330 bar) and a maximum oxygen pressure of 40 bar. The maximum amount of energy per combustion is 40000 J and the maximum working temperature is 50°C. The material in contact with the medium is stainless steel 1.4571. The vessel has a diameter of 53 mm and a height of 150 mm. It has a fixed ignition wire and can be converted for use with the C 14 combustible crucible.

Technical data

  • Usable volume max.: 210 ml
  • Pressure max.: 230 bar
  • Test pressure: 330 bar
  • Diameter: 53 mm
  • Working temperature max.: 50°C
  • Oxygen pressure max.: 40 bar
  • Energy max.: 40000 J
  • Material in contact with medium: Stainless steel 1.4571
  • Height: 150 mm
  • Weight: 1.75 kg
More Information
Iso Code PCE
UNSPSC code 41103800
Brand Ika
Manufacturer reference 0003015000
leadtime 10
ISO code PCE
eclass 32010000
Reference A56566
Sales Unit 1 Piece
