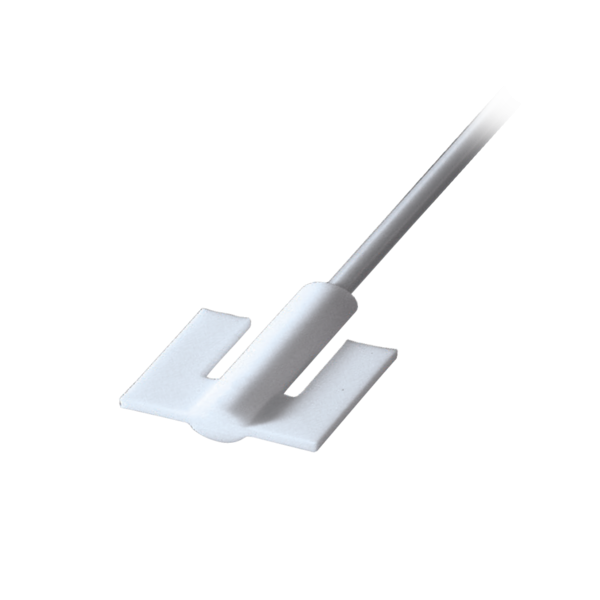

Heidolph AR 19 anchor stirrer - PTFE
Anchor-Type stirrer - These stirrers are recommended for applications which require a low speed - For mixing tasks with medium or high viscosity
Precise working with an overhead stirrer depends on the right choice of the stirrer tool. When choosing a stirrer tool you have to consider its different characteristics and their effects. For example, the flow which the tool causes in the medium, the tool´s adequate field of application depending on the speed range, and the execution of the tool according to the viscosity it is destined for
Application examples:
- Gassing of liquids < 500 mPa s: Radial Flow Impeller
- Homogenizing and suspending in liquids < 500 mPa s: Propeller-Type or Blade Impeller
- Medium with a viscosity > 500 mPa s: Anchor-Type Impeller, Blade Impeller BR 13, VISCO JET®
- Stirring of gel: VISCO JET®
Please ensure that for radial flow, blade, half-moon and VISCO JET® impellers the beaker size and position of your impeller complies with the shown guideline to achieve superior mixing results
|
Operational guidelines |
Position of the stirring tool
Circumferential speed
|
| UNSPSC code | 41103816 |
|---|---|
| Brand | Heidolph |
| Manufacturer reference | 509-19000-10 |
| eclass | 32012800 |
| leadtime | 21 |
| Overall dimensions | 60 x 40 x 5 mm |
| Reference | A37203 |
| Diameter | 8mm |
| Sales Unit | Piece |
| Material | PTFE |
| Length | 400 mm |
No price available or do you need more info for this product? Request your info with the form below.
