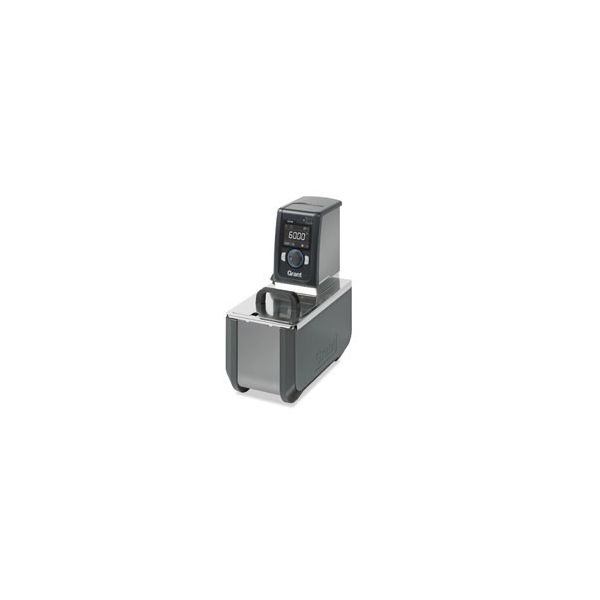

Grant Stirred thermostatic bath TXF200-ST5 (0-200°C)

- The Grant Optima™ TXF200 is a high-performance, programmable digital heating circulator with a full colour
   QVGA TFT screen displaying actual and set temperature and clear status icons.
- Intuitive screen icons and menus allow fast set-up of multiple parameters and provide precision control for both
   routine and sophisticated temperature-controlled applications in the range of -50 to 200ºC.
- The unit includes a high power variable speed integral pump for external fluid circulation and a powerful heater
   for fast heat-up and memory capacity for 10 programs of 100 segments each.
- USB interface allows connection to PC/laptop for programming or data logging.
- It can be used with Labwise™ software, program to set all parameters, including programs, via the PC.
- Labwise™ also features real-time status windows, a graphic display of the controller's performance as a
   program is run, and allows data to be logged for future recall and analysis.
- The TX200 can be used in combination with the Grant ST and P ranges of stainless steel and plastic tanks or
   with other vertical sided vessels.
- A clamp (T clamp) fitted to the rear of the TXF200 heating circulator allows it to be attached to any vertical
   sided tank with a maximum wall thickness of 35mm for rectangular tanks, 30mm for circular tanks (300mm
   diameter) and a capacity of up to 50 litres.
- For low temperature applications, combine with one of our refrigeration units.

- Temperature range -47 to 200ºC.
- Powerful pump for external circulation, multi-stage variable flow rate, max. flow 23 L/min, max. pressure 530
   mbar.
- Stirred circulation within the tank for good temperature stability and uniformity.
- Full colour QVGA TFT screen clearly diplaying actual and set temperatures, pump speed and clear status icons.
- Operating setpoint, plus three adjustable preset temperature values.
- Timer function for reaction timing, 99 hours, 59 minutes, with audible alert and heater control.
- Alarms can be configured to switch a relay (high and low) - visual, audible and programmable.
- Two-point user recalibration of internal and socket for external probes (TXPEP, TXSEP) USB interface.
- Optional Labwise™ PC software for program set-up, data-logging and real-time graphing.
- Storage for 10 programs of up to 100 segments.
- Choice of language: English, French, German, Spanish and Italian.
- Low liquid protection by float switch.
- Adjustable over-temperature cut-out.
