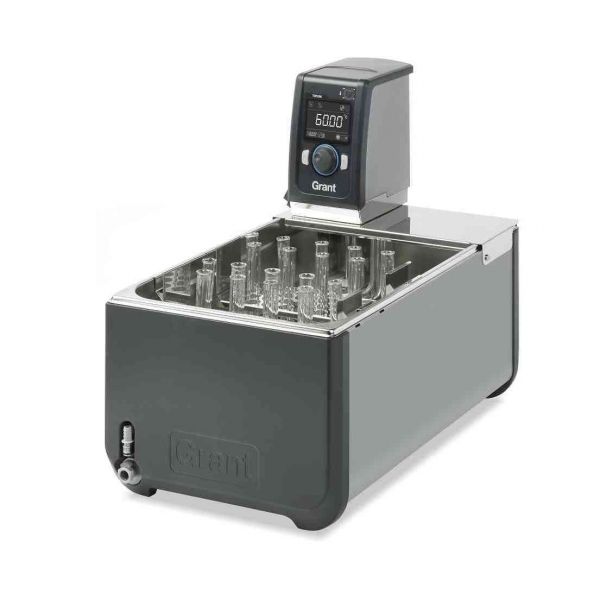

Grant Stirred thermost.bath TC120-ST26 (-15-120°C)
Digital heated circulator with easy to use rotary dial and two function keys for quick temperature setting and menu navigation.
- The Grant Optima™ TC120 is a general purpose digital heated circulator with easy to use rotary dial and two
   function keys for quick temperature setting and menu navigation.
- It provides digital control for simple, precise temperature control in the range of -20 to 120ºC.
- The TC120 can be used in combination with the Grant ST and P ranges of stainless steel and plastic tanks or with
   other vertical sided vessels.
- For low temperature applications, combine with one of our refrigeration units.
- A clamp (T clamp) fitted to the rear of the TC120 heating circulator allows it to be attached to virtually any
   vertical sided tank with a maximum wall thickness of 35mm for rectangular tanks, 30mm for circular tanks (300mm
   diameter) and a capacity of up to 50 litres.
- Minimum and maximum temperatures achievable are dependent upon tank insulation and minimum operating
   temperature depends on the accessory cooling device.
- Settable temperature range -20 to 120ºC.
- Integral pump for external fluid circulation.
- Easy to use rotary dial and two function keys for quick temperature setting and menu navigation.
- Stirred circulation within the bath ensures excellent temperature stability and uniformity.
- Easy to view 4 digit display.
- Three programmable temperature presets.
- Low liquid protection and over temperature cut-out.
- Countdown timer and visual alarm.
| Iso Code | SET |
|---|---|
| ISO code | PCE |
| Manufacturer reference | TC120-ST26 |
| eclass | 3201000 |
| leadtime | 14 |
| Brand | Grant Instruments |
| UNSPSC code | 41103701 |
| With lid | No |
| Reference | A25843 |
| Heating power | 1300W |
| Power supply | 220V |
| Int. Dimensions | 505x300x200mm(BxDxH) |
| Volume | 26 L |
| Weight | 10 kg |
| Analogue | No |
| Timer | Yes |
| Digital | Yes |
| Drain faucet | Yes |
| Type | TC120 series |
| Temperature range | -15°C -> 120°C |
| Sales Unit | 1 Piece (thermostate+tank) |
| Overall dimensions | 540x330x405mm(BxDxH) |
| Warranty | 3 years |
| Tank type | Stainless steel tank |
| With display | Yes |
| Thermostat | Mounted on the tank, with stirring function and pump for external applications |
