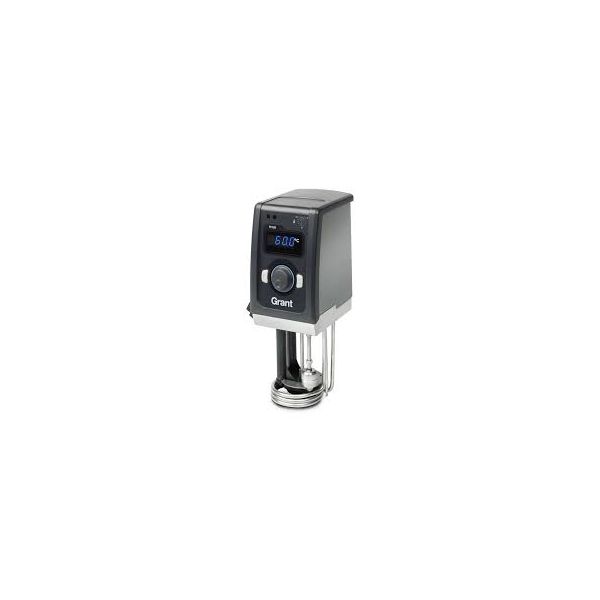

Grant heating circulator TC120

Reference
A27004
Sales Unit
Piece

Digital heated circulator with easy to use rotary dial and two function keys for quick temperature setting and menu navigation.

Login for Price

- The Grant Optima™ TC120 is a general purpose digital heated circulator with easy to use rotary dial and two
   function keys for quick temperature setting and menu navigation.
- It provides digital control for simple, precise temperature control in the range of -20 to 120ºC.
- The TC120 can be used in combination with the Grant ST and P ranges of stainless steel and plastic tanks or with
   other vertical sided vessels.
- For low temperature applications, combine with one of our refrigeration units.
- A clamp (T clamp) fitted to the rear of the TC120 heating circulator allows it to be attached to virtually any
   vertical sided tank with a maximum wall thickness of 35mm for rectangular tanks, 30mm for circular tanks (300mm
   diameter) and a capacity of up to 50 litres.
- Minimum and maximum temperatures achievable are dependent upon tank insulation and minimum operating
   temperature depends on the accessory cooling device.

- Settable temperature range -20 to 120ºC.
- Integral pump for external fluid circulation.
- Easy to use rotary dial and two function keys for quick temperature setting and menu navigation.
- Stirred circulation within the bath ensures excellent temperature stability and uniformity.
- Easy to view 4 digit display.
- Three programmable temperature presets.
- Low liquid protection and over temperature cut-out.
- Countdown timer and visual alarm.

More Information
Iso Code PCE
ISO code PCE
Manufacturer reference TC120
eclass 3201000
leadtime 14
Brand Grant Instruments
UNSPSC code 41103701
Reference A27004
Heating power 1300W
Power supply 220V
Weight 2,5 kg
Timer Yes
Digital Yes
Type TC120 series
Temperature range T° +5°C -> 120°C
Sales Unit Piece
Overall dimensions 120x172x335mm(BxDxH)
Warranty 3 years
With display Yes
Thermostat Mounted on the tank, with stirring function and pump for external applications
