2 Mag FABcontrol

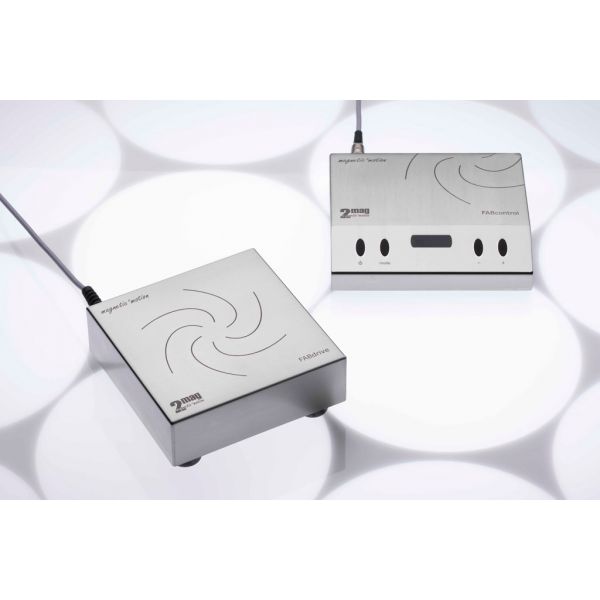

Control unit for FABdrive, powerful 100W stirring power, large speed range from 80 up to 990 rpm.
Control unit for FABdrive, powerful 100W stirring power, large speed range from 80 up to 990 rpm, variable SoftStart-function for reliable catching/centering and safe accelerating of the stirring bar at different volume and viscosities.
Digital display for speed- and SoftStart-setting (variable, 10-60 seconds) and live speed, QuickSet for quick setting of the start-and maximum speed, QuickStop-function against after-run and glass breakage, Beep-function at falling below set speed, storage of last function status when turning off, firm stainless steel housing, easy to clean.
3 years warranty on material- and manufacturing, developed and made in Germany.
Speed range: 80 – 990 rpm.
Stirring power (max.): 100W.
Acceleration: variable, 10 – 60 sec.
Buzzer Tolerance: variabel, 5 – 50 rpm.
Housing material: Stainless-steel.
Measurements (WxDxH): 200 x 175 x 48 mm.
Weight: 2 kg.
Permitted operation conditions: 0 up to +40°C (at 80% humidity).
Permitted storage conditions: -40°C up to +70°C, 10 – 95%, 500 - 1060 hPa.
Protection category: IP 20.
Electrical data: 100-240V/50-60Hz/1.5A.
Iso Code | PCE |
---|---|
Manufacturer reference | 94402 |
UNSPSC code | 41103806 |
ISO code | PCE |
eclass | 32010000 |
leadtime | 12 |
Brand | 2 Mag |
Speed/frequency | 80-990 rpm |
Sales Unit | Piece |
Power supply | 230V |
Overall dimensions | 200x175x48 mm(BxDxH) |
With display | Yes |
Warranty | 3 years |
Reference | A27807 |
Weight | 2 kg |
Control | External control unit |
With heating function | No |
