Counting chamber Neubauer, with clamps

Reference
A03614
Sales Unit
Piece

The counting chambers serve to determine the number of particles per volume unit of a liquid. The particles (e.g. leucocytes, erythrocytes, thrombocytes, bacteria, fungus spores, pollen) are visually counted under a microscope. The types of counting chambers differ in counting grids and the depths of the chambers. Orthogonal lines form grids which become visible by magnifying them with a microscope. The grid of a counting chamber is engraved into the surface of its base.



Login for Price

Neubauer :
double ruling, with or without spring clips

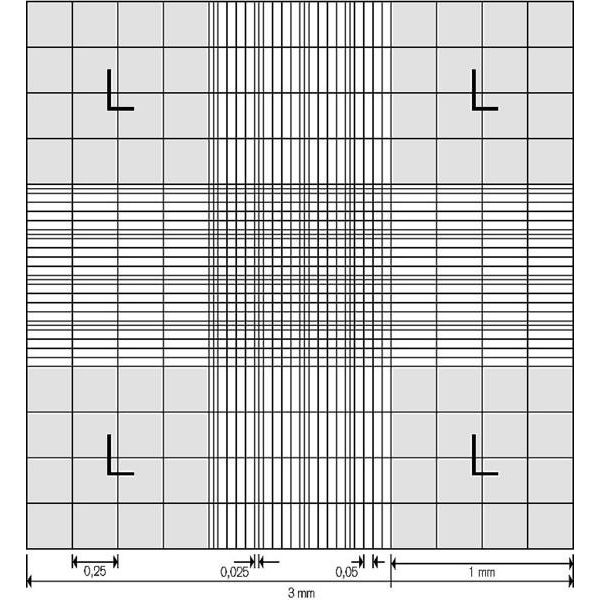

The ruling shows 9 large squares of 1 mm² each.
The four large squares in the corners marked "L" for counting leucocytes are each subdivided into 16 squares with 0.25 mm sides. The large square in the center is subdivided into 16 squares with 0.25 mm sides.
Each group square consists of 16 mini squares with 0.05 mm sides, each having an area of 0.0025 mm².
The 5 group squares in the large central square are used for counting thrombocytes and erythrocytes. Contrary to the more advanced Improved Neubauer counting chambers, the counting area of each group square is limited by the outer one of the triple boundary lines.
Manufactured according to DIN 12 847, including 2 haemacytometer cover glasses.



More Information
Manufacturer reference 718620
eclass 32030000
leadtime 5
UNSPSC code 41122604
Brand Brand
Sales Unit Piece
Reference A03614
Finish With clamps
