Counting chamber Fuchs-Rosenthal, with clamps

Reference
A03622
Sales Unit
Piece

The counting chambers serve to determine the number of particles per volume unit of a liquid. The particles (e.g. leucocytes, erythrocytes, thrombocytes, bacteria, fungus spores, pollen) are visually counted under a microscope. The types of counting chambers differ in counting grids and the depths of the chambers. Orthogonal lines form grids which become visible by magnifying them with a microscope. The grid of a counting chamber is engraved into the surface of its base.



Login for Price

Fuchs-Rosenthal  :
double ruling, with or without spring clips

The ruling differs from the customary systems for blood cell counts by ist large area of 16 mm².

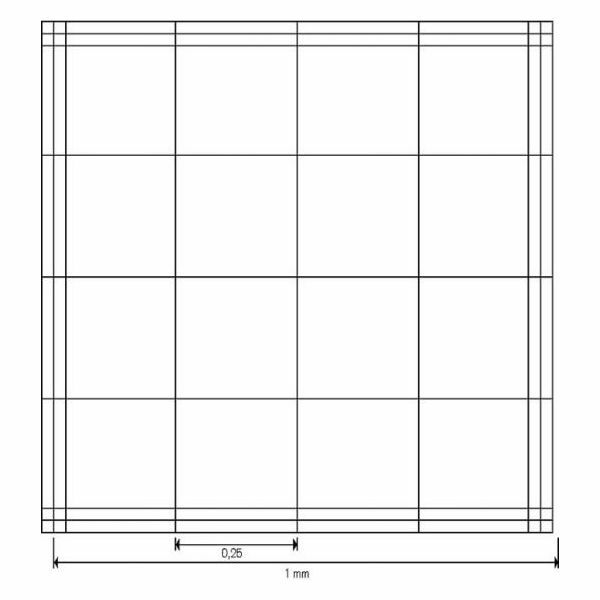

The ruling shows 16 large squares of 1 mm². Each large square is subdivided into 16 mini squares with 0.25 mm sides and an area of 0.0625 mm².
This chamber is frequently used for counting cells in the cerebro-spinal fluid.
CE-marked according to IVD-Directive 98/79 CE.



More Information
UNSPSC code 41122604
Manufacturer reference 719820
eclass 32030000
leadtime 5
Reference A03622
Finish With clamps
Sales Unit Piece
