Counting chamber Bürker-Türk
The counting chambers serve to determine the number of particles per volume unit of a liquid. The particles (e.g. leucocytes, erythrocytes, thrombocytes, bacteria, fungus spores, pollen) are visually counted under a microscope. The types of counting chambers differ in counting grids and the depths of the chambers. Orthogonal lines form grids which become visible by magnifying them with a microscope. The grid of a counting chamber is engraved into the surface of its base.
Bürker-Türk :
double ruling, with or without spring clips
Combination of the Bürker and Thoma systems.

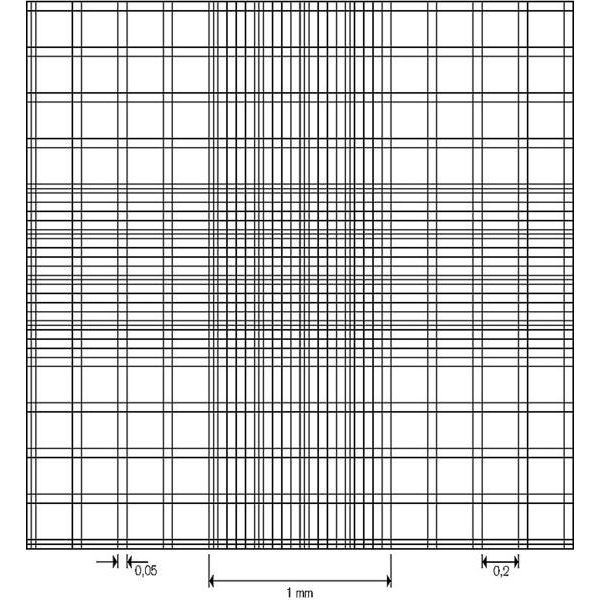

The ruling shows 9 large squares of 1 mm² each. The large squares are subdivided into 16 group squares with 0.2 mm sides. in the central large square, each group square is subdivided into 16 mini squares with 0.05 mm sides (= 0.0025 mm²).
Manufactured according to DIN 12 847, including 2 haemacytometer cover glasses.
Manufacturer reference | 719505 |
---|---|
ISO code | PCE |
eclass | 32030000 |
leadtime | 5 |
UNSPSC code | 41122604 |
Brand | Brand |
Sales Unit | 1 Piece |
Reference | A03619 |
Finish | Without clamps |
