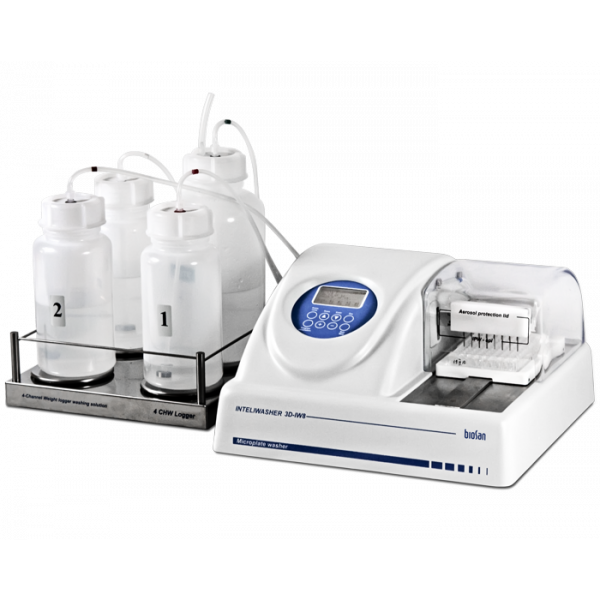

Biosan 3D-IW8 Microplate washer

- Inteliwasher 3D-IW8 series microplate washer is designed for washing various types of standard 96-well
   microtitre plates, microstrips as well as microarrays on FastFRAME (rectangular well shape).
- It is suitable for washing wells with different bottom shapes: flat, U-shape and V-shape.
- The unit is fully programmable ensuring multi-step solution ripening, aspiration (aspiration, combination of
   aspiration/liquid dispensing and soaking, as well as soaking cycle during a particular period of time).
- Dispense system of liquid dosage for each channel separately.
- The unit provides:

  - Washing mode.
  - Rinsing mode.
  - Mixing mode.
  - Single point, two point, circular (circle or rectangular path) aspiration.
  - Possibility of additional solution mixing during time gap between two work cycles.
  - Possibility to use microtest plates by different manufacturers, ensured by automated plate set up (adjusting
     to different depths of plate wells).
  - Round-bottom plate and strip washing mode.
  - Possibility of user-defined programs with adjustable parameters.

- The unit has 50 programs divided into 5 following aspiration categories (see figure leftward):
  - Type 1 (1.0–1.9) IPF96 U/V is intended for roundand V-shape immunoplates, 1 point aspiration.
  - Type 2 (2.0–2.9) IPF96 FLAT-2 is intendedfor flat-bottom shape immunoplates, 2 point aspiration.
  - Type 3 (3.0–3.9) IPF96 FLAT-C is intended for rectangular shape immunoplates, full-circle aspiration direction.
  - Type 4 (4.0–4.9) FastFRAME-2 is intendedfor multi-slide plate* with rectangular wells.
  - Type 5 (5.0–5.9) FastFRAME-C is intendedfor multi-slide* plate with rectangular wells.

- The FastFRAME (Schleicher&Shuel) multi-slide plate or analog plate of another manufacturer, that is compatible
   with standard 25 x 76 mm (1 x 3 inch) glass slides.
- The unit is designed for use in closed laboratory rooms at temperatures from +10°? to +35°? and relative
   humidity up to 80% at +25°? decreasing linearly to 50% relative humidity at 35°C.
- 4-channel washing solution weight logger, 4 CHW Logger provides automatic control of rinsing solution and
   waste volumes.
- The washer shows remaining volume for each bottle as percentage and gives a warning message in case of low
   solution volume or full waste bottle when 4 CHW Logger is connected.
