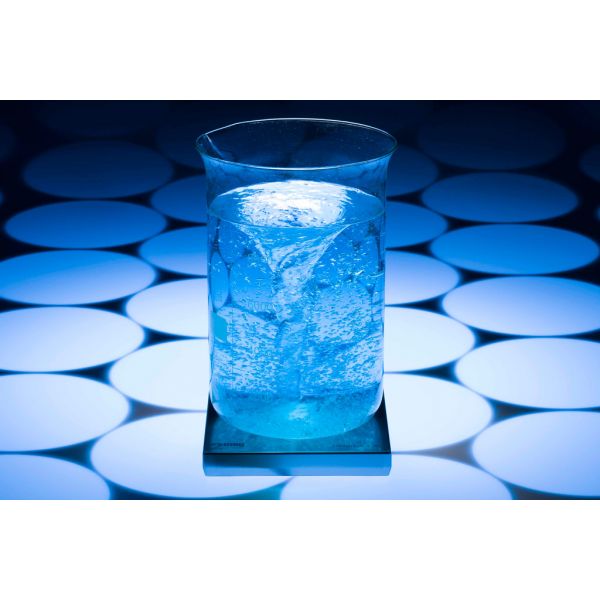

2 Mag MIXdrive 1 XL with external control
Ultra flat, compact and strong magnetic stirrer with fully automatic stirring bar monitoring mixWATCH, up to 40 litres stirring volume.
Ultra flat, compact and strong magnetic stirrer with fully automatic stirring bar monitoring mixWATCH, up to 40 litres stirring volume, also suitable for highly viscous media, temperature resistant up to +150°C, very strong magnetic coupling by SmCo-magnets, therefore predestined for magnetic power transmission over wide distances or for thick vessel bottoms.
Maintenance-free 2mag-motor-drive with large speed range from 60 up to 2,000 rpm, IP66, temperature resistant up to +150°C, designed for use in ovens, extremely robust construction and performance, easy to clean and firm.
Stirring points: 1.
Stirring volume / stirring point: up to 40 litres.
Material housing: Stainless steel.
Permitted operation conditions: +5 up to +150°C (at 95% humidity).
Operating voltage: 48VDC.
Dimensions (WxDxH): 225 x 225 x 38 mm.
Protection category: IP66.
Weight (gross): approx. 3.4 kg.
| Iso Code | PCE |
|---|---|
| Manufacturer reference | 40601 |
| UNSPSC code | 41103806 |
| ISO code | PCE |
| eclass | 32010000 |
| leadtime | 12 |
| Brand | 2 Mag |
| Sales Unit | 1 Piece |
| Power supply | 24VDC |
| Overall dimensions | 225x225x38 mm(BxDxH) |
| With display | No |
| Warranty | 3 years |
| Reference | A27831 |
| Weight | 3,4 kg |
| # stirring points | 1 |
| Max. volume | 1-40 l |
| Control | External control unit |
| With heating function | No |
